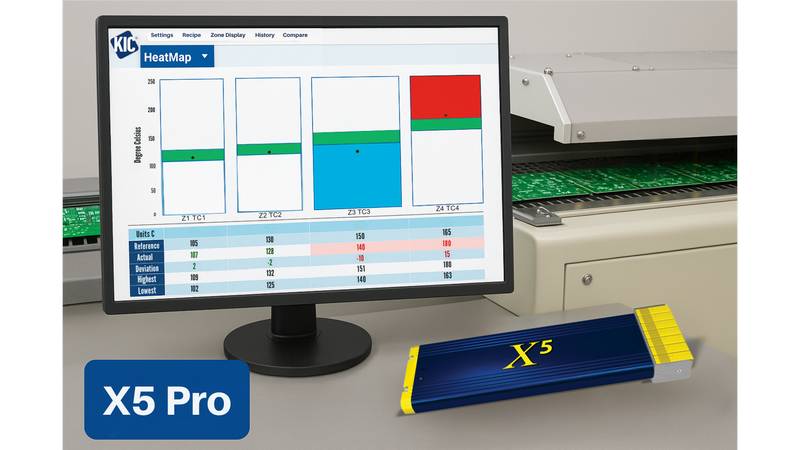

The smart profiler package that maximizes investment with smart optimization and proactive oven health monitoring capability
X⁵ Pro™ Advantages
Pro Capabilities
- Transforms underused profilers into highly productive monitoring tools
- Real-time visualization of each zone’s performance vs a reference condition
- Identifies intermittent thermal drifts that may not be visible during isolated profile checks
- Integrated Navigator Power™ optimization. Powerful search engine identifies optimum recipe setup
- PWI – Instant process analysis with a single number
- Unique process specifications for each thermocouple
Additional Standard Features
- Intuitive TAS (Thermal Analysis System) software
- Fast and accurate manual profiling
- Single screen overview
- Profile graph
- Metrics (slopes, reflow time, peak)
- Oven settings
- Suggested optimal settings
- Solder paste specification library
- SPC charting – Automatic Cpk calculations
Optional Smart Features – AI, Data Analytics, Automated Outputs
- *NEW* Common Recipe Finder™ for efficient production changeover and improved Overall Equipment Effectiveness
- Auto-Focus Power™ – automated NPI oven recipe creation
- Sweet Spot Process Development for better process results
- TC mapping for report/audit documentation
- External data outputs
- Audible light tower for out of spec conditions
Hardware and Built-In Conveniences
- Robust and durable design
- Operates on three AAA batteries or USB powered when connected to PC
- 7, 9, and 12 channel configurations
- Push button on/off with LED indicator
- Variety of available thermal shields
X⁵ Profiler Specifications
| Accuracy | -150°C to 0°C±(1.1°C = 1.1%) 0°C to 500°C ±1.1°C 500°C to 1050°C±(1.1°C = 0.3%) |
| Resolution | 0.1°C |
| Internal Operating Temp: | 0°C to 85°C |
| Sample Rate: | 0.002 to 10 readings/sec |
| Data Points: | 224,640 |
| Temperature Range: | -150°C to 1050°C |
| PC Connection: | USB 2.0 (Std-A/Mini-B) (USB power when connected to PC) |
| Power Requirements: | (3) AAA batteries |
| Thermocouple Compatibility: | Type K, Standard |
| Dimensions (L x W x H mm): | |
| 7 Channel Unit: | 202.0 x 60.0 x 17.0 |
| 9 Channel Unit: | 202.0 x 75.0 x 17.0 |
| 12-Channel Unit: | 208.0 x 98.0 x 17.0 |
X⁵ with Thermal Shield
| Models | Dimensions – Length x Width x Height | 150°C | 200°C | 250°C | 300°C | 350°C | 400°C |
|---|---|---|---|---|---|---|---|
| 7 CH Single Layer Cool Touch | 303 x 75 x 24 | 17.5 | 12.0 | 9.0 | 7.7 | 6.5 | |
| 7 CH Triple Layer Cool Touch | 303 x 81 x 30 | 26.8 | 17.6 | 13.4 | 11.1 | 9.7 | |
| 7 CH HT-400 Stainless Steel * | 304 x 78 x 29 | 24.9 | 17.6 | 14.0 | 11.5 | 10.1 | 9.2 |
| 9 CH Single Layer Cool Touch | 313 x 91 x 24 | 18.1 | 13.1 | 10.1 | 8.4 | 6.7 | |
| 9 CH Triple Layer Cool Touch | 313 x 96 x 30 | 26.3 | 17.1 | 13.4 | 10.9 | 9.4 | |
| 9 CH HT-400 Stainless Steel * | 304 x 93 x 29 | 24.9 | 17.6 | 14.0 | 11.5 | 10.1 | 9.2 |
| 12 CH Single Layer Cool Touch | 325 x 115 x 24 | 17.7 | 12.0 | 8.9 | 7.4 | 6.1 | |
| 12 CH Triple Layer Cool Touch | 325 x 120 x 30 | 24.6 | 17.8 | 13.8 | 11.7 | 9.9 | |
| 12 CH HT-400 Stainless Steel * | 310 x 117 x 29 | 24.9 | 17.6 | 14.0 | 11.5 | 10.1 | 9.2 |
*Compatible with Datalogger mode only
X⁵ Pro Kit Contents
- X⁵ Smart Profiler
- Gloves
- HeatMap Probe – 1 TC per Zone* (15 TC Maximum)
- Scissors
- HeatMap Mounting Hardware
- Software/Manuals/Hardware Guides on USB Thumb Drive
- HeatMap Self-Installation** Guide
- USB Software Protection Dongle
- 2 USB Cables (A-Male/Mini-B)
- Getting Started Guide for Profiler and HeatMap
- Thermal Shield*
- Thermocouples**
- Calibration Certificate
- Carrying Case
* These items may vary according to specific models/configuration ordered.
** KIC Installation and Training available for HeatMap.
Contact KIC for more details.
HeatMap Probe Specifications
- Accuracy: ±1.1°C
- Thermocouples: Type K
- Maximum Temperature: 450°C
Computer Configuration
Minimum System Requirements
- Dual Core / 1 GHz Processor PC with 2 GB RAM
- 2 GB available storage
- Video 1024 x 768 resolution / 16-bit
- 1 available USB port (for data download or Smart Dock)
- 1 available USB port (for software protection dongle)
